Board » Technical Discussion » AGL 14 Issues

Page: Previous 1 2 3 4 5 6

Hi Kipper

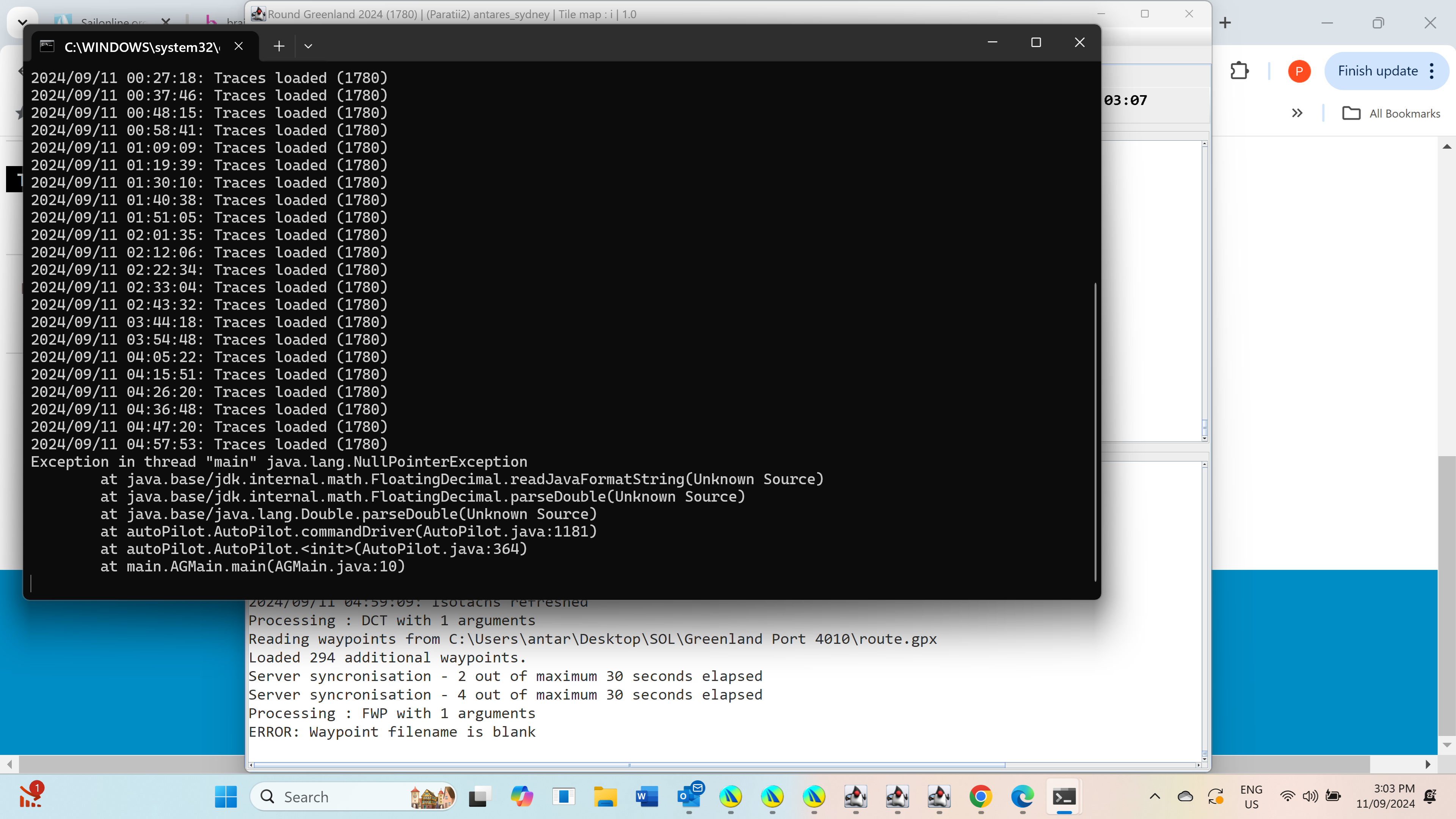

A new "crash" when pasting dcs into window and pressing set; AGL locked up and threw the attached message in cmd line
Attachments
antares_sydney said @ 2024-09-11 05:17:19:
Hi Kipper
A new "crash" when pasting dcs into window and pressing set; AGL locked up and threw the attached message in cmd line
.
.
You weren't setting DCs, you were filtering a waypoint file (matches the stack trace line number and the FWP command). I suspect a filter tolerance dialog popped up and you entered something wrong in it, or it was hidden under other windows which caused the lock. One thing I notice is your path names have spaces in them. Probably not a good idea and I do not check for them. Hence why I think is saying the waypoint file is blank.
Hey Kipper - B1 here - back from 6 months on a desert island :)

Having trouble with the new(?) DC table button. Won't open the standard CSV file from QT - keeps reopening the file selector window. (Worse - I've lost my bookmark to the webbased file converter I used to use :( !) Hope you can help!

Ed

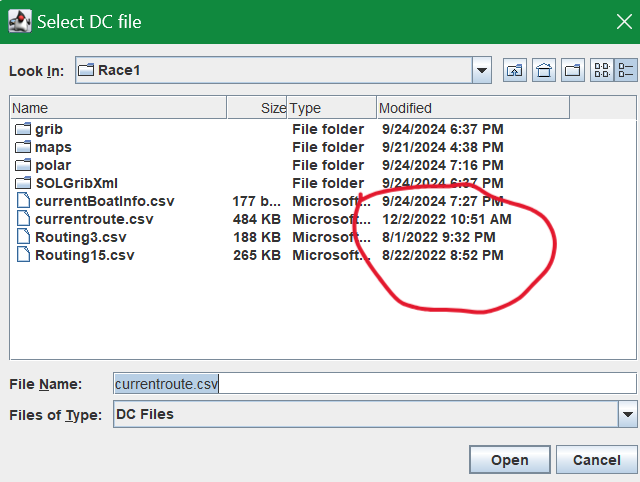

UPDATE: Kipper, check the screen shot attached. For some reason the file picker is showing files that don't exist - note the file dates - some from two years ago!!! Further, the same error occurs in each of the other File picker windows. Non-existent files dated in 2022.


--- Last Edited by BadgerOne at 2024-09-23 18:14:48 ---

--- Last Edited by BadgerOne at 2024-09-25 00:36:44 ---

--- Last Edited by BadgerOne at 2024-09-25 00:45:06 ---
Attachments
UPDATE: Kipper, check the screen shot attached. For some reason the file picker is showing files that don't exist - note the file dates - some from two years ago!!! Further, the same error occurs in each of the other File picker windows. Non-existent files dated in 2022.
.

Rember that AGL remembers folders that you have set previously. That Race 1 folder exists and you are pointing to it. To find out where you are, and point to the correct folder, click on the down arrow next the Race 1 and then navigate to where you should be.

With the DC read, AGL will initially ask you for a file to open. If that file does not contain any DCs later than now (in other words, there are no valid DCs to set), it assumes you have selected the wrong file and asks for another.
There is a problem with AGL 14.6.0 in that it will hang on first creation of the map if no level 3 polygons exist in the race area of interest. A fix has been released, see https://www.sailonline.org/board/thread/16719/agl14-releases/?page=11#post-18141
Hi Kipper

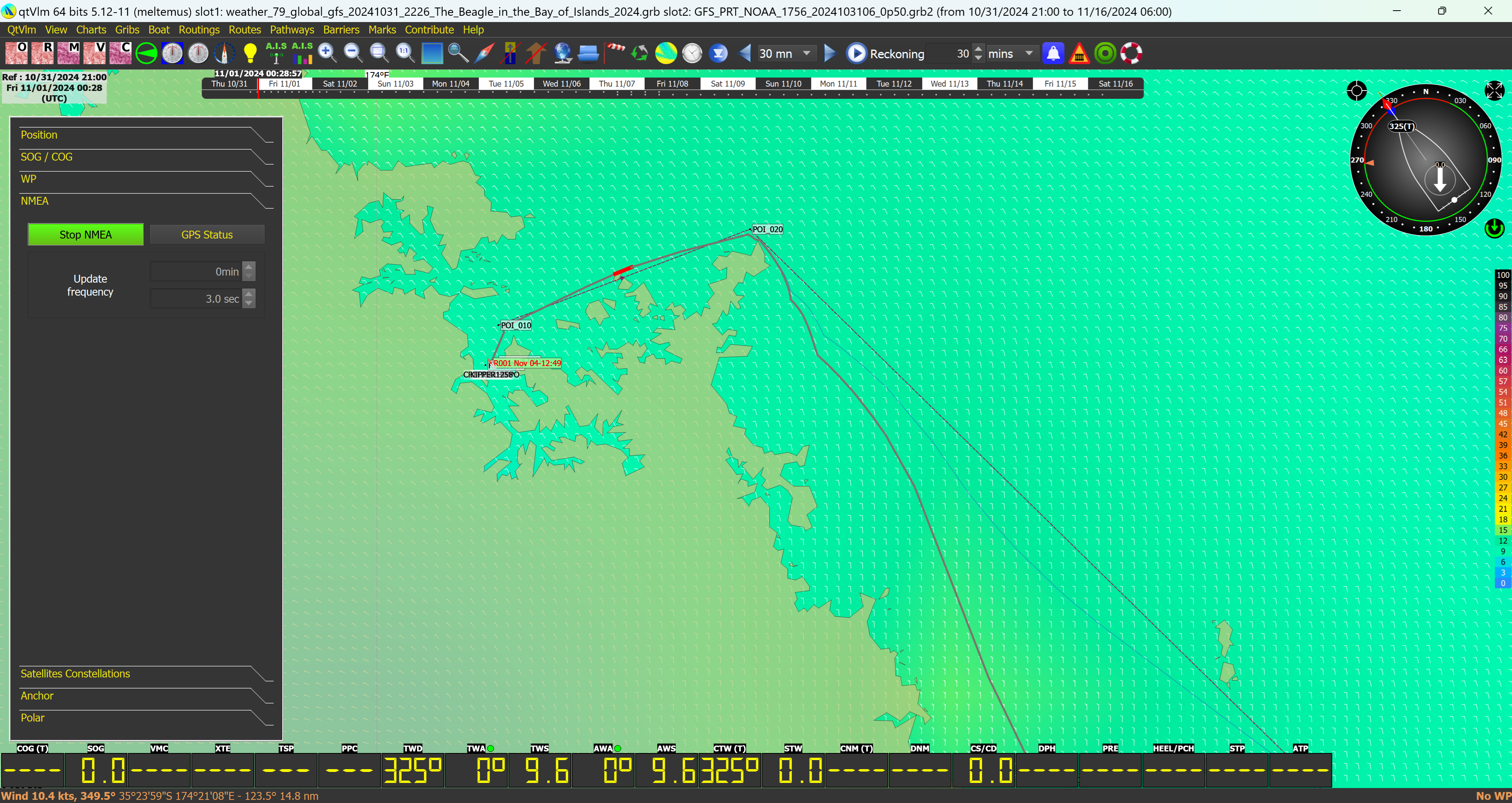

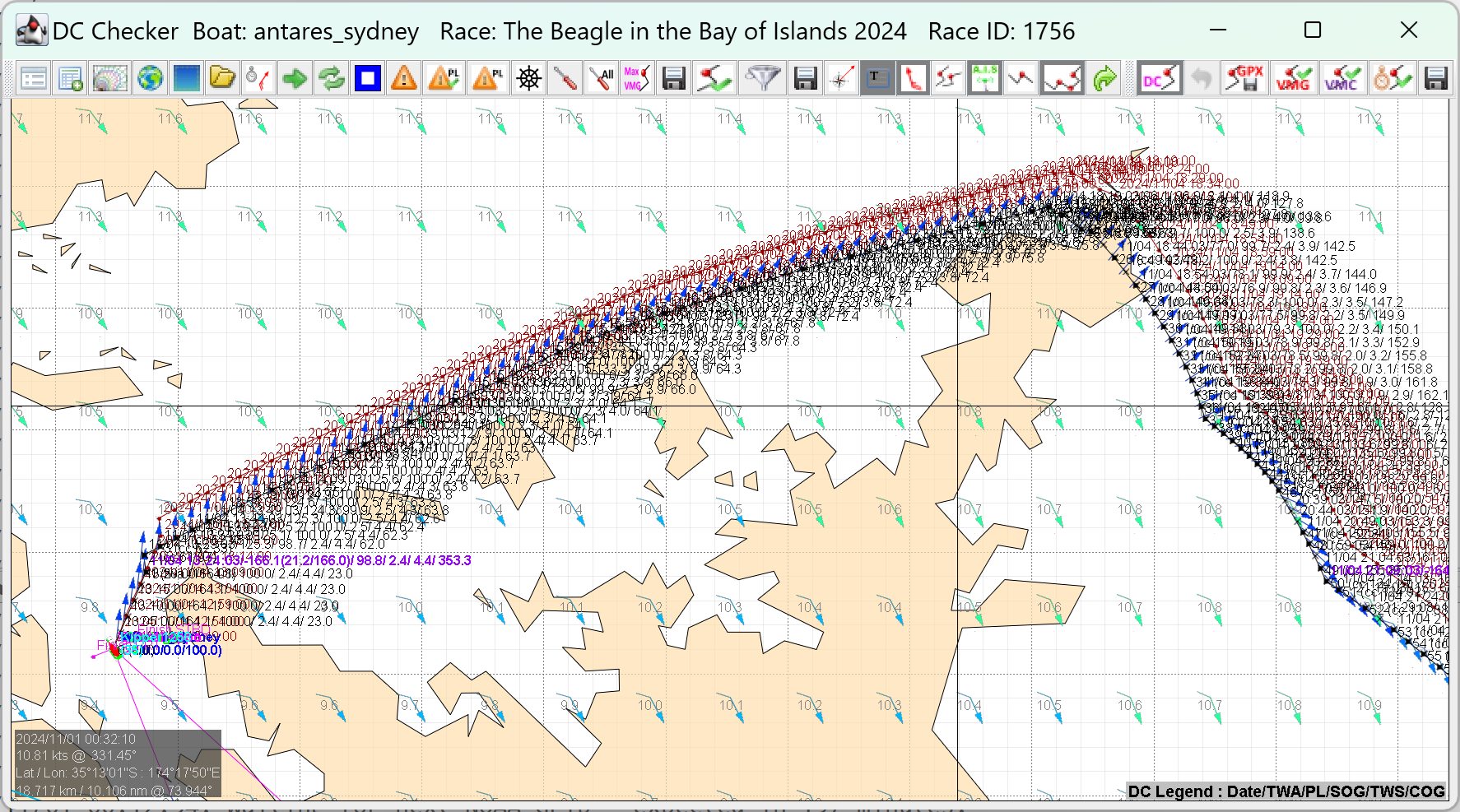

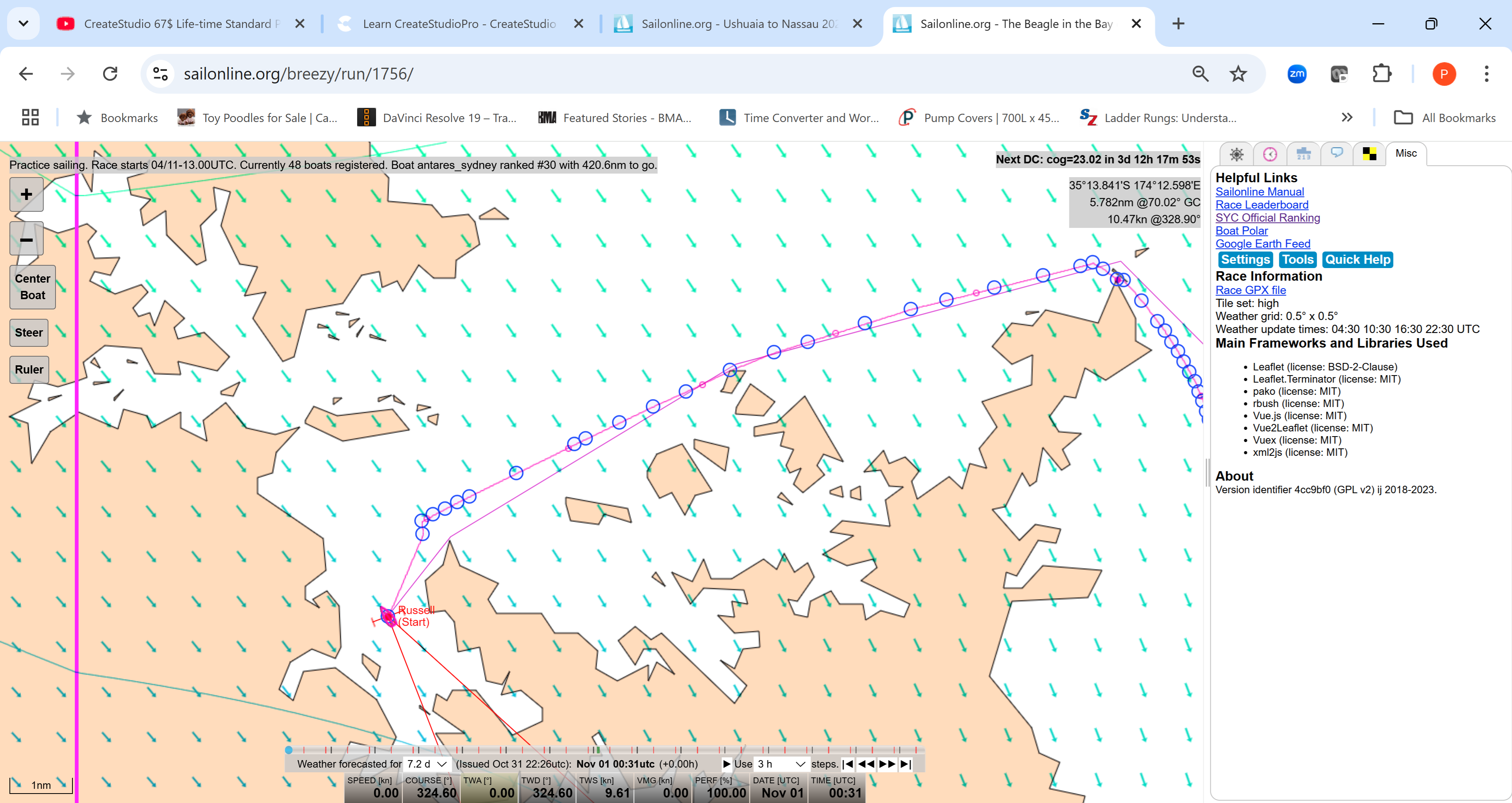

Running 6.1 and have an anomaly between QT, SOL client and AGL on route. See pics below
Attachments
...and I don't know what is the red route in AGL? I may have missed it in the manual???!!
...and I don't know what is the red route in AGL? I may have missed it in the manual???!!
.
That's the additional course waypoint created when you load the DCs from qt through the DC Data Table. Have a read through that section.

I suspect your first DC was earlier than now when you checked it, and has been removed. Or there is a bug with DC's before the race has started, and the boat is not moving.
This thread has now closed. AGL 23 is the new version with a matching issues thread.

Page: Previous 1 2 3 4 5 6

Thread is locked.
